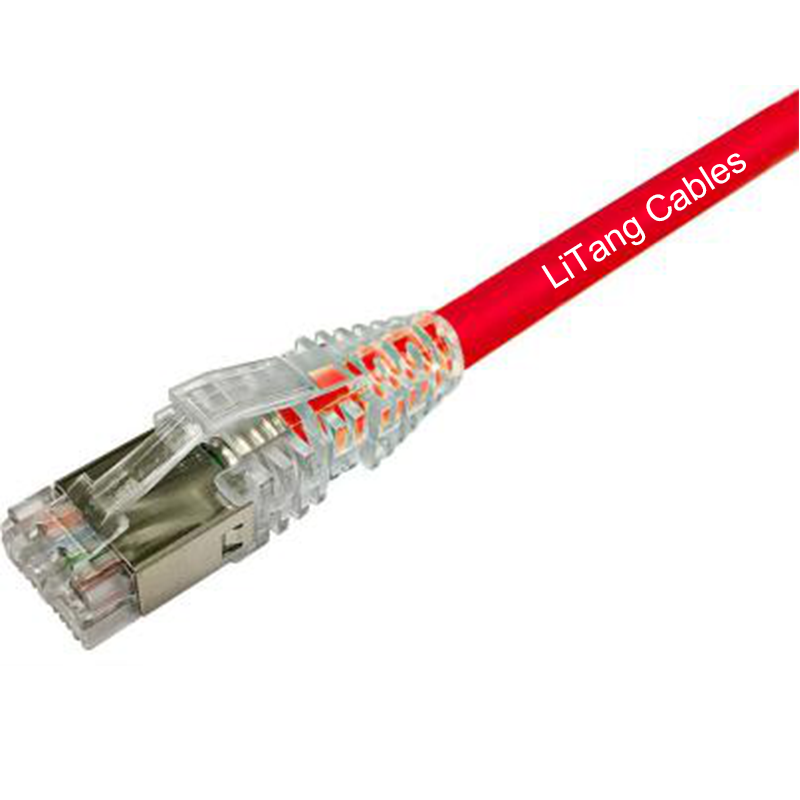

Cat6A RJ45 S/FTP Red Patch Cord

LT® G10SP on S/FTP Low Smoke Zero Halogen Cordage, S/FTP Modular Patch Cord, Red Jacket

High-performance patch cords exceeding industry standards supporting LITANG channel specifications

Standardized transparent, slim-line boots provides consistent patch cord appearance and supports highest density applications

Colored clips are available to fit the transparent boot, eliminating the need of multiple colors for matching every jacket color

Colored pull latch tabs are available for easier plug release handling from the modular jack


Product Classification


Regional Availability

Asia| EMEA

Portfolio

LITANG®

Product Type

Twisted pair cables

Product Brand

LITANG®


General Specifications


Product Number

1-20-00412

ANSI/TIA Category

6A

Interface Feature, connector A/B

Standard

Cable Type

S/FTP (shielded)

Conductor Type, singles

Standard

Interface, Connector A/B

Standard

Jacket Color

Red

Wiring T568B
Pairs, quantity

4

Separator Type

Isolator

Transmission  Standards

ANSI/TIA-568-C.2| ISO/IEC 11801 Class EA


Dimensions


Cable Assembly Length,  minimum (m)

1

Diameter  Over Jacket, nominal

100

Jacket  Thickness

5.9 mm | 0.232 in

Compatible  Conductor Gauge, stranded

26 AWG


Ordering Tree


 ordering tree

Mechanical Specifications


Plug  Insertion Life, minimum

750 Times


Environmental Specifications

Conductor Material

-20 °C to +60 °C (-4 °F to +140 °F)

Relative  Humidity

Up to 93%, non-condensing

Environmental  Space

Low Smoke Zero Halogen (LSZH)

Safety Standard

UL 1863

Packaging and Weights


Packaging quantity

1


Regulatory Compliance/Certifications


REACH-SVHC

Compliant as per SVHC revision on www.commscope.com/ProductCompliance

ROHS

Compliant
