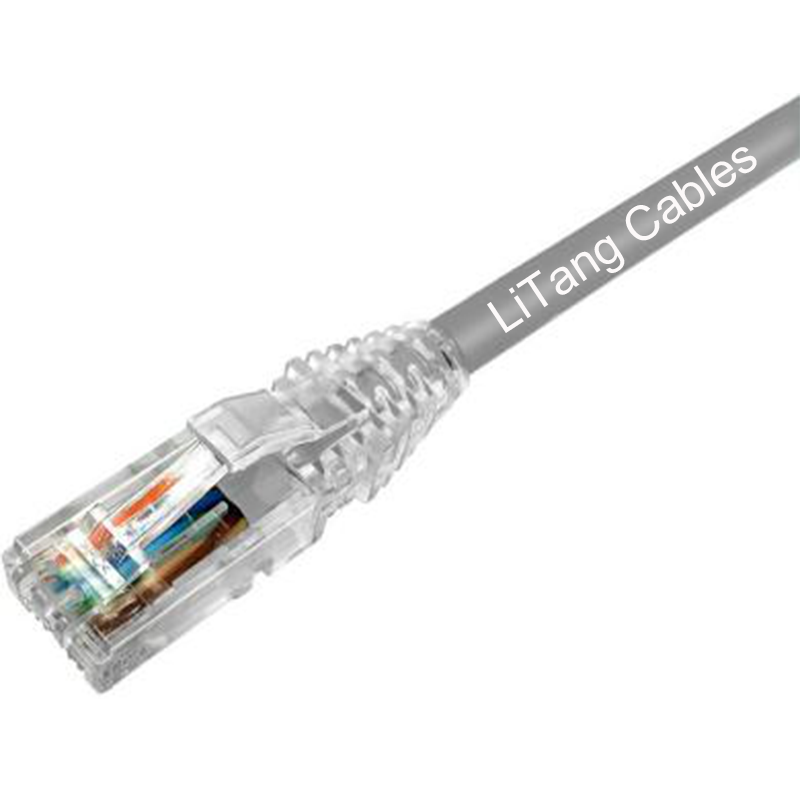

High-performance patch cords exceeding industry standards supporting LITANG channel specifications
Standardized transparent, slim-line boots provides consistent patch cord appearance and supports highest density applications
Colored clips are available to fit the transparent boot, eliminating the need of multiple colors for matching every jacket color
Colored pull latch tabs are available for easier plug release handling from the modular jack
Product Classification
Regional Availability | Asia| EMEA |
Portfolio | LITANG® |
Product Type | Twisted pair cables |
Product Brand | LITANG® |
General Specifications
Product Number | 1-20-00418 |
ANSI/TIA Category | 6 |
Interface Feature, connector A/B | Standard |
Cable Type | S/FTP (shielded) |
Conductor Type, singles | Standard |
Interface, Connector A/B | Standard |
Jacket Color | Grey |
| Wiring | T568B |
| Pairs, quantity | 4 |
| Separator Type | Isolator |
| Transmission Standards | ANSI/TIA-568-C.2| ISO/IEC 11801 Class EA |
Dimensions
Cable Assembly Length, minimum (m) | 1 |
Diameter Over Jacket, nominal | 100 |
Jacket Thickness | 5.9 mm | 0.232 in |
Compatible Conductor Gauge, stranded | 26 AWG |
Ordering Tree
Mechanical Specifications
Plug Insertion Life, minimum | 750 Times |
Environmental Specifications
Conductor Material | -20 °C to +60 °C (-4 °F to +140 °F) |
Relative Humidity | Up to 93%, non-condensing |
Environmental Space | Low Smoke Zero Halogen (LSZH) |
Safety Standard | UL 1863 |
Packaging and Weights
Packaging quantity | 1 |
Regulatory Compliance/Certifications
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
ROHS | Compliant |
