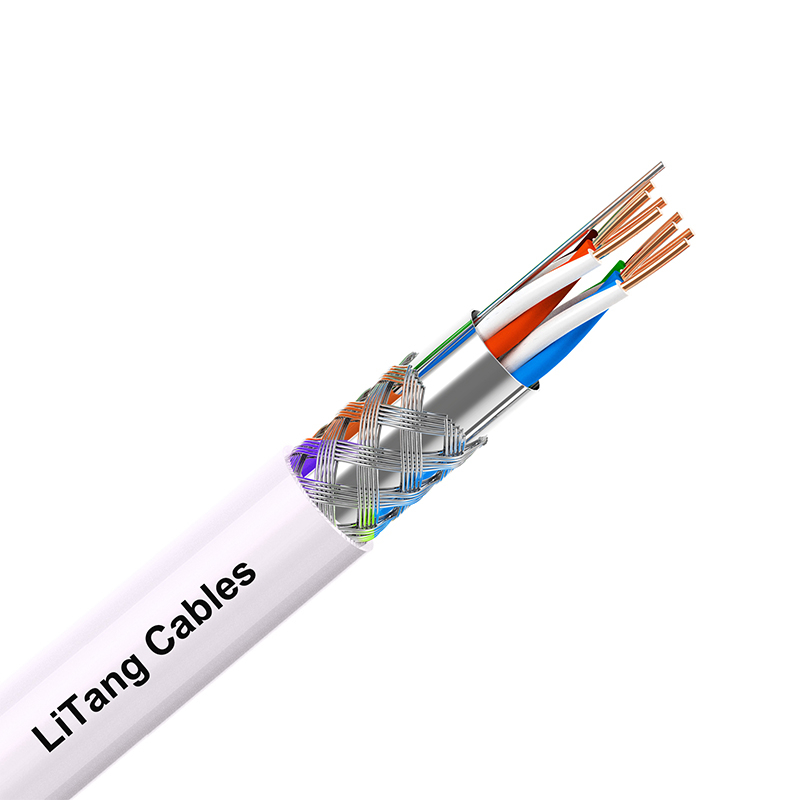

CAT6A F/UTP Cable

Category 6A, F/UTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m) length reel
Availability:

Product Classification


Regional Availability

MEA

Portfolio

LITANG®

Product Type

Twisted pair cables


General Specifications


Product Number

6A20253

ANSI/TIA Category

6A

Cable Component Type

Horizontal

Cable Type

F/UTP (shielded)

Conductor Type, singles

Solid

Conductors, quantity

8

Jacket Color

White

Pairs, quantity

4

Separator Type

Isolator

Transmission  Standards

 ANSI/TIA-568-C.2| ISO/IEC 11801 Class EA


Dimensions


Cable Length

1000 ft | 304.8 m

Diameter  Over Jacket, nominal

0.296 in | 7.518 mm

Conductor Gauge,singles

23 AWG

Drain Wire Gauge

26 AWG

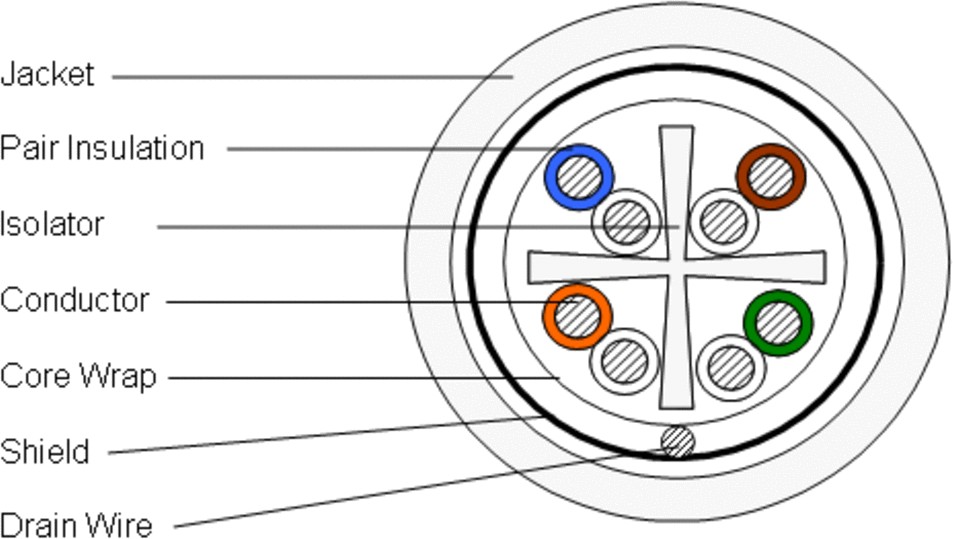

Cross Section Drawing





Electrical Specifications


Characteristic Impedance

100 ohm

Characteristic  Impedance  Tolerance

±15 ohm

dc  Resistance,  maximum

8 ohms/100 m | 2.438 ohms/100 ft

Delay Skew, maximum

45 ns

Dielectric Strength, minimum

1500 Vac | 2500 Vdc

Mutual   Capacitance  at  Frequency

5.6 nF/100 m @ 1 kHz

Nominal Velocity of Propagation (NVP) 64%
Operating Frequency, maximum 500 MHz
Operating Voltage, maximum 80 V
Remote  Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2,CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A


Material Specifications

Conductor Material

Bare copper

Insulation Material

Polyolefin

Jacket Material

Low Smoke Zero Halogen (LSZH)

Shield (Tape) Material

Aluminum Polyester


Mechanical Specifications

Pulling Tension, maximum

25 lb | 11.34 kg


Environmental Specifications

Installation temperature

0 °C to +60 °C (+32 °F to +122  °F)

Operating Temperature

-20 °C to +60 °C (-4 °F to +140  °F)

Acid Gas Test Method

IEC 60754-2

Environmental Space

Low Smoke Zero Halogen (LSZH)

Flame Test Method

IEC 60332-1

Smoke Test Method

IEC 61034-2


Packaging and Weights


Packaging Type

Reel
