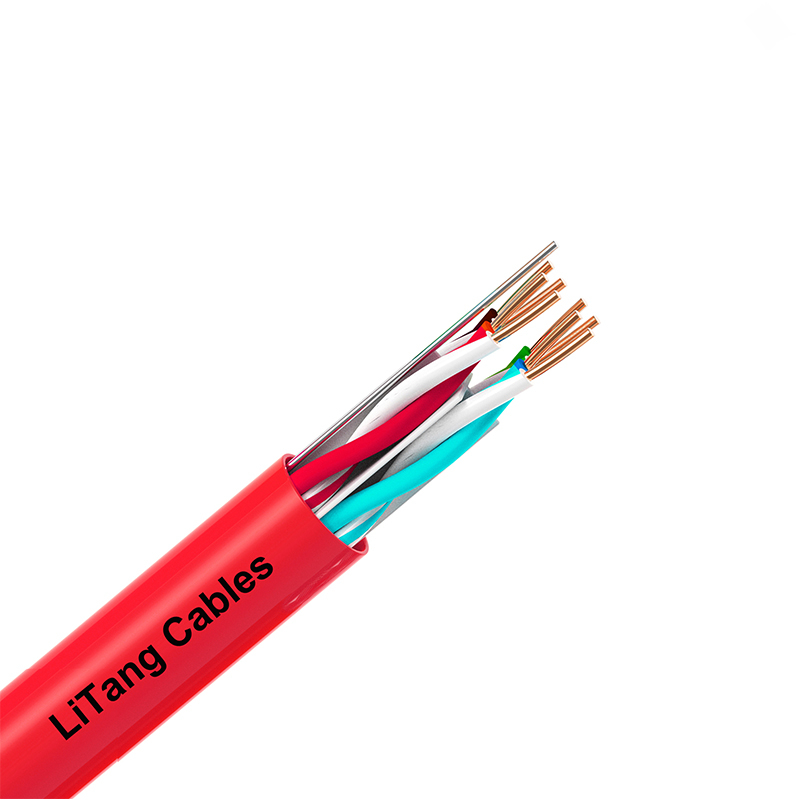

CAT6 UTP Red Cable

Category 6 U/UTP Cable, low smoke zero halogen, red jacket, 4 pair count, 1000 ft (305 m) length

Product Classification


Regional Availability

Asia | EMEA

Portfolio

LITANG®

Product Type

Twisted pair cables

Product Series

620 Series


General Specifications


Product Number

620012

ANSI/TIA Category

6

Cable Component Type

Horizontal

Cable Type

U/UTP (unshielded)

Conductor Type, singles

Solid

Conductors, quantity

8

Jacket Color Orange
Pairs, quantity 4
Transmission  Standards ANSI/TIA-568-C.2|  CENELEC EN 50288-6-1| ISO/IEC 11801 Class E


Dimensions


Cable Length

1000 ft | 304.8 m

Diameter   Over Jacket,  nominal

0.252 in | 6.401 mm

Conductor Gauge, singles

23 AWG


Cross Section Drawing



Electrical Specifications


Characteristic Impedance

100 ohm

Characteristic  Impedance  Tolerance

±15 ohm

Delay Skew, maximum

45 ns

Mutual   Capacitance  at  Frequency

5.6 nF/100 m @ 1 kHz

Nominal Velocity of Propagation (NVP)

65 %

Operating Voltage, maximum

80 V

Remote  Powering

Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A




Material Specifications

Center Conductor Material

Bare copper

Insulation Material

Polyolefin

Jacket Material

Low Smoke Zero Halogen (LSZH)


Environmental Specifications


Operating  Temperature

-20 °C to +75 °C (-4 °F to +167 °F)

Storage  Temperature

-20 °C to +60 °C (-4 °F to +140 °F)

Flame  Test  Method

NEC Article 800| UL 444


Packaging and Weights


Packaging Type

Reel in box
