Product Classification
Regional Availability | Asia |
Portfolio | LITANG® |

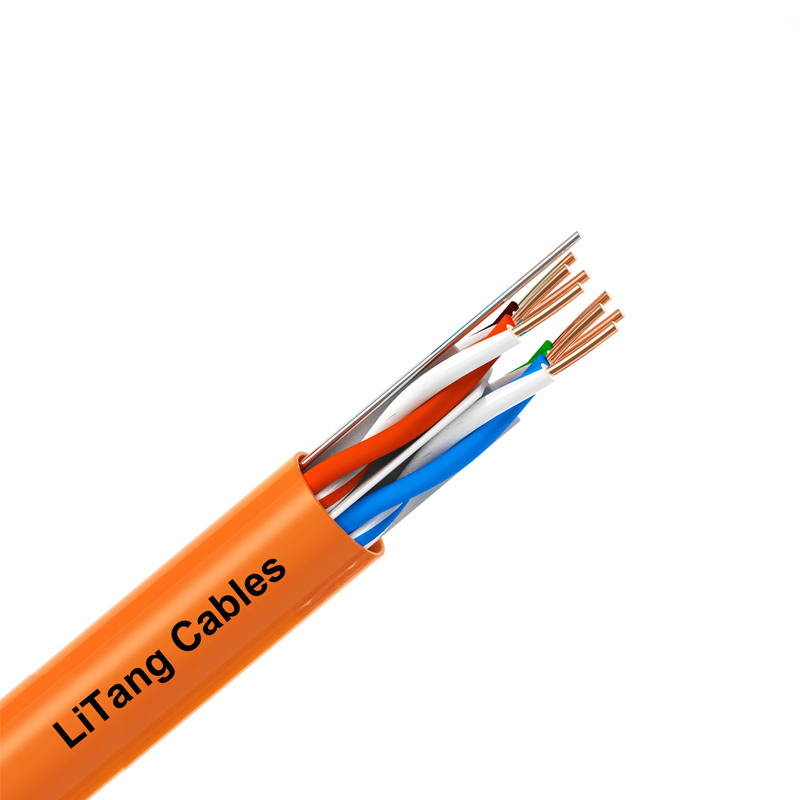

Product Type | Twisted pair cables |
General Specifications
ANSI/TIA Category | 6 |
Cable Component Type | Horizontal |
Cable Type | U/UTP (unshielded) |
Conductor Type, singles | Solid |
Conductors, quantity | 8 |
Jacket Color | Black |
Pairs, quantity | 4 |
Transmission Standards | ANSI/TIA-568-C.2| ISO/IEC 11801 Class E |
Dimensions
Diameter Over Jacket, nominal | 0.283 in | 7.188 mm |
Conductor Gauge,singles | 23 AWG |
Electrical Specifications
Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |

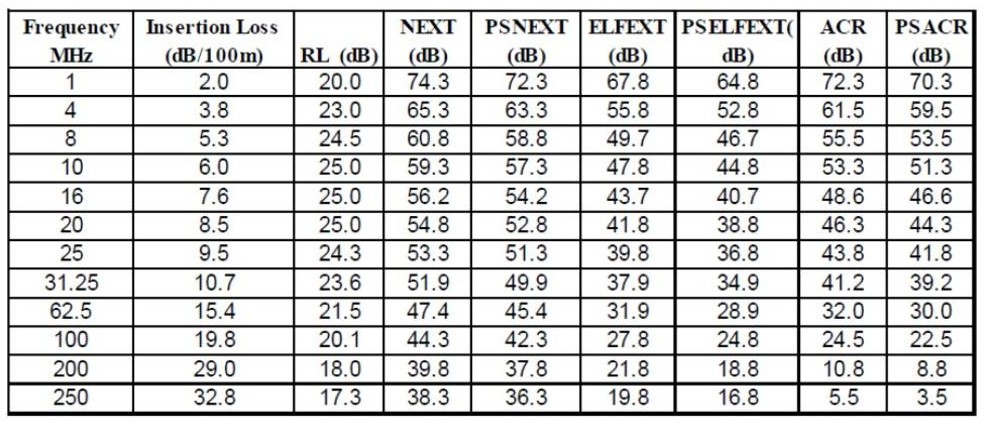

Electrical Performance
Material Specifications
Conductor Material | Bare copper |
Insulation Material | Polyolefin |
Jacket Material | Low Smoke Fire Retardant Zero Halogen (LSFRZH)| UV resistant |
Minimum Bend Radius, single Bend | 28 mm | 1.102 in |
Pulling Tension, maximum | 31 lb | 14.061 kg |
Environmental Specifications
Operating Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
Environmental Space | Cable is not suitable for direct burial applications| Indoor | Outdoor |
Packaging and Weights
Packaging Type | Reel |
Regulatory Compliance/Certifications
Agency | Classification |
CHINA-ROHS | Below maximum concentration value |
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
ROHS | Compliant |
