Product Classification
Regional Availability | Asia| Australia/New Zealand| EMEA| Latin America |
Portfolio | LITANG® |
Product Type | Twisted pair cables |
General Specifications
ANSI/TIA Category | 6 |
Cable Component Type | Horizontal |
Cable Type | U/UTP (shielded) |
Conductor Type, singles | Solid |
Conductors, quantity | 8 |
Jacket Color | Black |
| Pairs ,quantity | 4 |
Transmission Standards | ANSI/TIA-568-C.2| ISO/IEC 11801 Class E |
Dimensions
Cable Length | 1000 ft | 304.8 m |
Diameter Over Jacket, nominal | 0.248in | 6.299 mm |
Conductor Gauge,singles | 23 AWG |

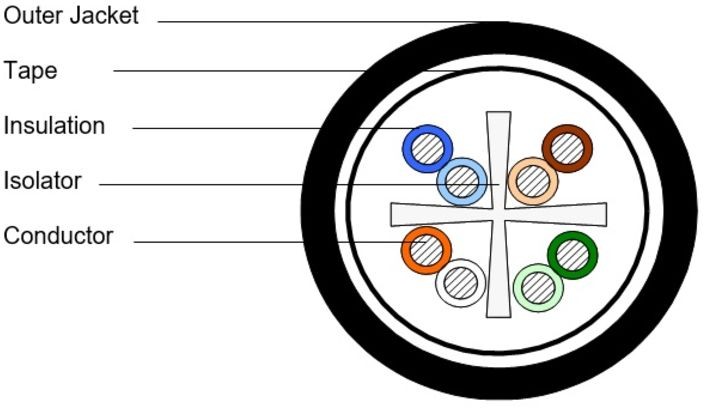

Cross Section Drawing
Electrical Specifications
Characteristic Impedance | 100 ohm |
Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
Material Specifications
Conductor Material | Bare copper |
Jacket Material | PE |
Environmental Specifications
Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Environmental Space | UV resistant for outdoor and/or direct burial installations |
Flame Test Method | NEC Article 800 | UL 444 |
Packaging and Weights
Packaging Type | Pull box |
Regulatory Compliance/Certifications
Agency | Classification |
CHINA-ROHS | Below maximum concentration value |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
ROHS | Compliant |
