Availability: | |
---|---|
Product Classification
Regional Availability | Asia | EMEA |
Portfolio | LITANG® |

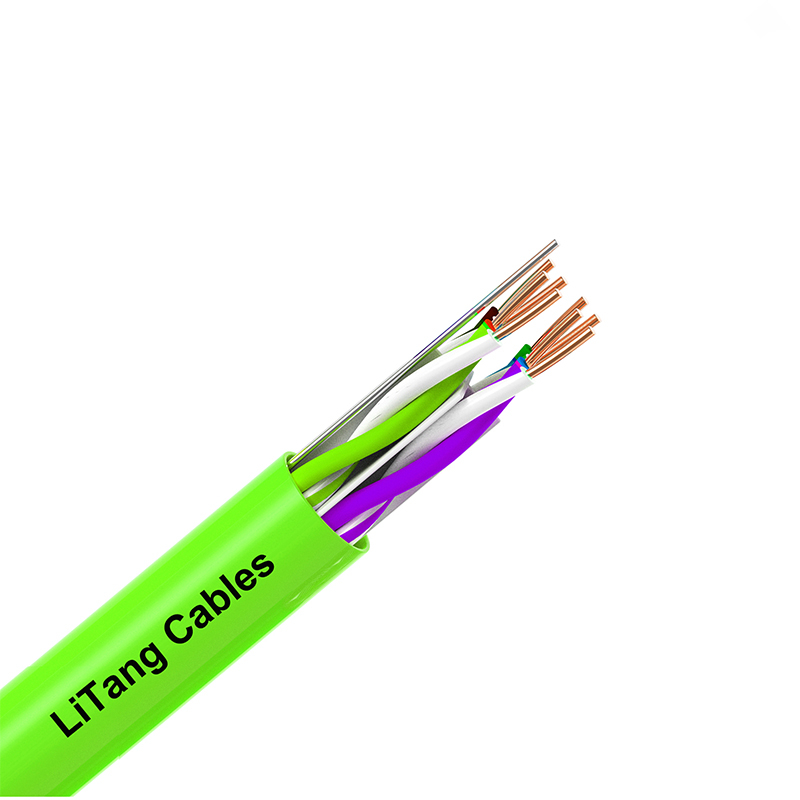

Product Type | Twisted pair cables |
Product Series | 620 Series |
General Specifications
Product Number | 620008 |
ANSI/TIA Category | 6 |
Cable Component Type | Horizontal |
Cable Type | U/UTP (unshielded) |
Conductor Type, singles | Solid |
Conductors, quantity | 8 |
Jacket Color | Green |
Pairs, quantity | 4 |
Transmission Standards | ANSI/TIA-568-C.2| CENELEC EN 50288-6-1| ISO/IEC 11801 Class E |
Dimensions
Cable Length | 1000 ft | 304.8 m |
Diameter Over Jacket, nominal | 0.252 in | 6.401 mm |
Conductor Gauge, singles | 23 AWG |
Cross Section Drawing
Electrical Specifications
Characteristic Impedance | 100 ohm |
Characteristic Impedance Tolerance | ±15 ohm |
Delay Skew, maximum | 45 ns |
Mutual Capacitance at Frequency | 5.6 nF/100 m @ 1 kHz |
Nominal Velocity of Propagation (NVP) | 65 % |
Operating Voltage, maximum | 80 V |
Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
Material Specifications
Center Conductor Material | Bare copper |
Insulation Material | Polyolefin |
Jacket Material | Low Smoke Zero Halogen (LSZH) |
Environmental Specifications
Operating Temperature | -20 °C to +75 °C (-4 °F to +167 °F) |
Storage Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
Flame Test Method | NEC Article 800| UL 444 |
Packaging and Weights
Packaging Type | Reel in box |
