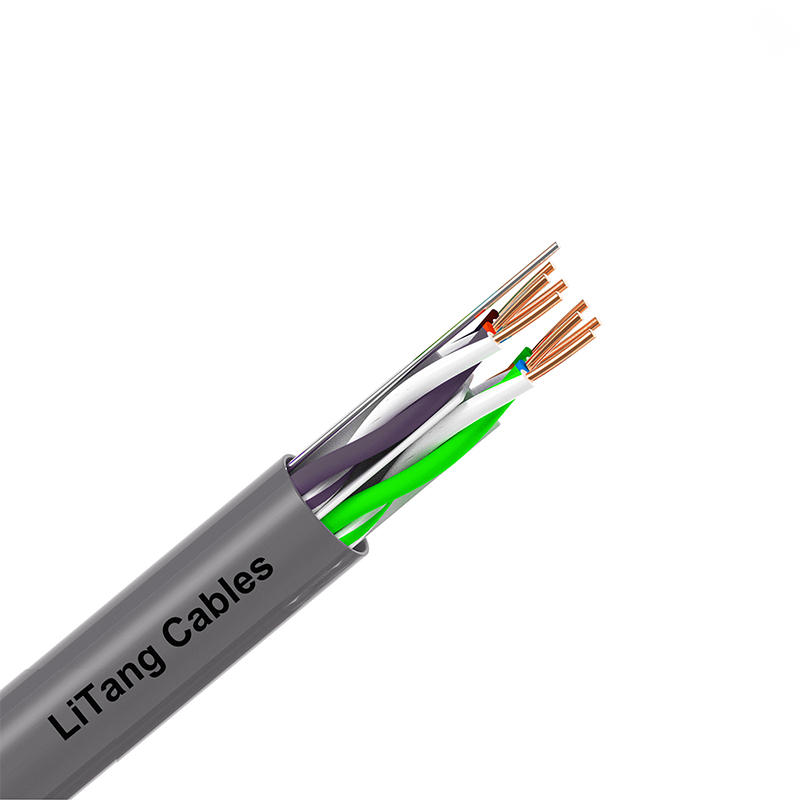

Product Classification
Regional Availability | Asia | Australia/New Zealand |
Portfolio | LITANG® |
Product Type | Twisted pair cables |
General Specifications
Product Number | 6A20011 |
ANSI/TIA Category | 6A |
Cable Component Type |
Horizontal |
Cable Type |
U/UTP (unshielded) |
Conductor Type, singles | Solid |
Conductors, quantity | 8 |
Jacket Color | Gray |
| Pairs, quantity | 4 |
| Separator Type | Isolator |
| Transmission Standards |
TANSI/TIA-568-C.2| CENELEC EN 50288-6-1| ISO/IEC 11801 Class E |
Dimensions
Cable Length |
1000 ft | 304.8 m |
Diameter Over Jacket, nominal | 0.323 in | 8.204 mm |
Jacket Thickness | 0.028 in | 0.711 mm |
Conductor Gauge,singles | 23 AWG |

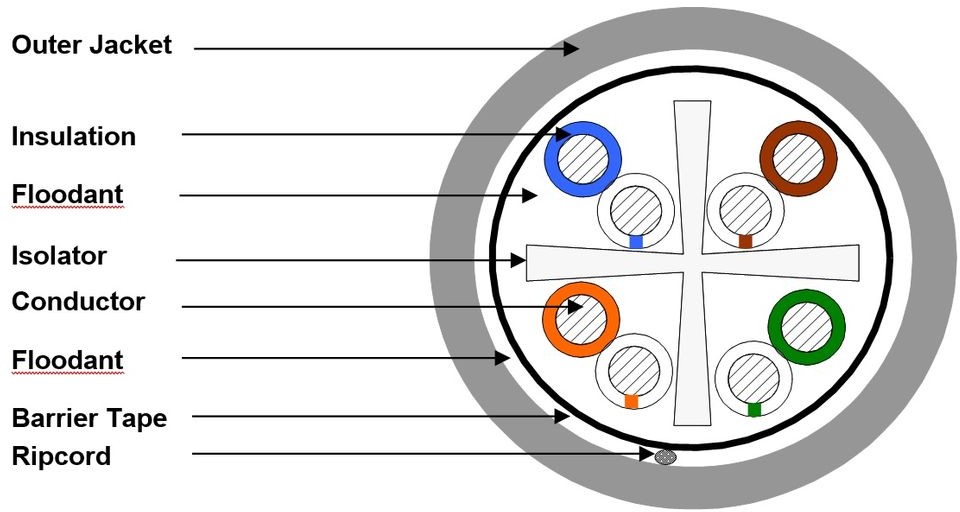

Cross Section Drawing
Electrical Specifications
| Characteristic Impedance | 100 ohm |
| dc Resistance, Unbalance, maximum |
5 % |
dc Resistance, maximum |
9.38 ohms/100 m | 2.859 ohms/100 ft |
| Delay Skew, maximum | 45 ns |
| Dielectric Strength, minimum | 1500 Vac|2500 Vdc |
Mutual Capacitance at Frequency |
6.0 nF/100 m @ 1 kHz |
Nominal Velocity of Propagation (NVP) | 65% |
Operating Frequency, maximum | 500 MHz |
Operating Voltage, maximum | 80 V |
| Remote Powering | Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2,CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A |
Material Specifications
Conductor Material | Bare copper |
Insulation Material | Polyolefin |
Jacket Material |
PE |
Separator Material | Polyolefin |
Pulling Tension, maximum |
25 lb | 11.34 kg |
Environmental Specifications
Installation temperature |
-25 °C to +75 °C (-13 °F to +167 °F) |
Operating Temperature |
-25 °C to +75 °C (-13 °F to +167 °F) |
Storage Temperature |
-25 °C to +75 °C (-13 °F to +167 °F) |
Environmental Note |
UV resistant for outdoor and/or direct burial installations |
Environmental Space |
Buried |
Packaging and Weights
Cable Weight |
37 lb/kft | 5.115 kg/km |
Packaging Type | Reel |
Regulatory Compliance/Certifications
Agency | Classification |
CHINA-ROHS | Below maximum concentration value |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
ROHS | Compliant |
