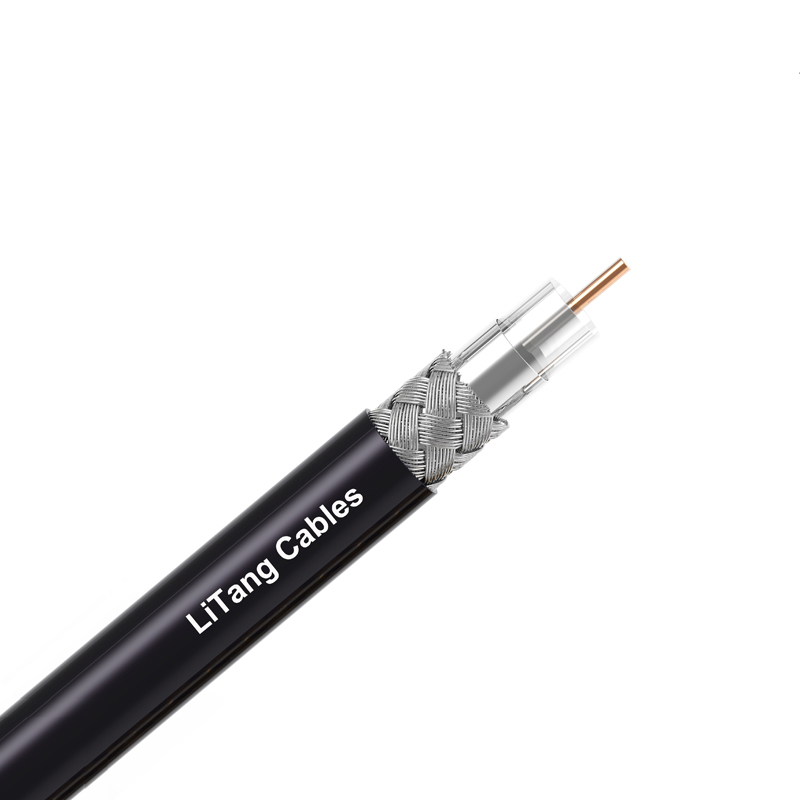

Product Classification
| Product Type | Coaxial drop cable |
| Product Brand | LITANG® |
| Product Series | 11 Series |
| Warranty | One year |
General Specifications
| Cable Type | Series 11 |
| Center Conductor Type | Solid |
| Jacket Color |
Black |
| Jacket Marking | Meters |
| Shield Construction Type | Quad shield |
Dimensions
| Diameter Over Center Conductor, nominal | 0.064 in | 1.626 mm |
| Diameter Over Dielectric, nominal |
0.28 in | 7.112 mm |
| Diameter Over Inner Shield (Tape), nominal |
0.287 in | 7.29 mm |
| Diameter Over Jacket, nominal |
0.407 in | 10.338 mm |
| Jacket Thickness, nominal |
0.037 in | 0.94mm |
| Center Conductor Gauge | 14 AWG |
| Inner Shield (Braid) Gauge | 34 AWG |
| Outer Shield (Braid) Gauge | 34 AWG |
Electrical Specifications
| Capacitance | 16.2 pF/ft | 53.15 pF/m |
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| dc Resistance Note | Nominal values based on a standard condition of 20 °C (68 °F) |
| dc Resistance, Inner Conductor, nominal | 12.5 ohms/kft | 41.01 ohms/km |
| dc Resistance, Loop, nominal | 16.2 ohms/kft | 53.15 ohms/km |
| dc Resistance, Outer Conductor, nominal | 3.7 ohms/kft | 12.139 ohms/km |
| Nominal Velocity of Propagation (NVP) | 85 % |
| Operating Frequency Band | 5–3000 MHz |
| Attenuation | ||
| Frequency (MHz) 5.0 | Attenuation (dB/100 m) 1.25 | Attenuation (dB/100 ft) 0.38 |
| 55.0 | 3.15 | 0.96 |
| 83.0 | 3.87 | 1.18 |
| 85.0 | 3.9 | 1.19 |
| 187.0 | 5.74 | 1.75 |
| 204.0 | 6.14 | 1.87 |
| 211.0 | 6.23 | 1.9 |
| 250.0 | 6.72 | 2.05 |
| 300.0 | 7.38 | 2.25 |
| 350.0 | 7.94 | 2.42 |
| 400.0 | 8.53 | 2.6 |
| 450.0 | 9.02 | 2.75 |
| 500.0 | 9.51 | 2.9 |
| 550.0 | 9.97 | 3.04 |
| 600.0 | 10.43 | 3.18 |
| 750.0 | 11.97 | 3.65 |
| 865.0 | 13.05 | 3.98 |
| 1000.0 | 14.27 | 4.35 |
| 1218.0 | 16.14 | 4.92 |
| 1300.0 | 16.44 | 5.01 |
| 1400.0 | 17.13 | 5.22 |
| 1500.0 | 17.79 | 5.42 |
| 1600.0 | 18.44 | 5.62 |
| 1700.0 | 19.08 | 5.81 |
| 1794.0 | 19.66 | 5.99 |
| 1800.0 | 19.7 | 6 |
| 2000.0 | 20.89 | 6.37 |
| 2200.0 | 22.05 | 6.72 |
| 2500.0 | 23.7 | 7.22 |
| 2800.0 | 25.28 | 7.71 |
| 3000.0 | 26.3 | 8.02 |
Material Specifications
| Center Conductor Material | Copper-clad steel |
| Dielectric Material | Foam PE |
| Jacket Material | Fire retardant PVC |
| Inner Shield (Braid) Coverage | 60 % |
| Inner Shield (Braid) Material | Aluminum |
| Inner Shield (Tape) Material | Aluminum/Polymer/Aluminum (APA) bonded |
| Outer Shield (Braid) Coverage | 40% |
| Outer Shield (Tape) Material | Aluminum |
| Outer Shield (Tape) Material | Aluminum/Polymer/Aluminum (APA) |
Environmental Specifications
| Environmental Space | Indoor |
| Flame Test Listing | AS| NZS 1600.5.6 |
Packaging and Weights
| Packaging Type | Reel |
| Weight, gross | 72 lb/kft |9.954 kg/km |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
