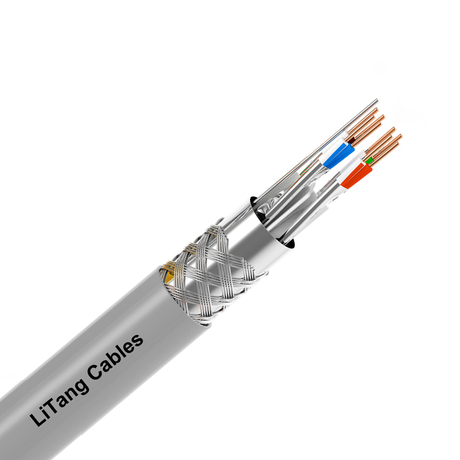

CAT7A Copper Cable
Specifications
Product Classification
Regional Availability | Australia/New Zealand | EMEA |
Portfolio | LITANG® |
Product Type | Twisted pair cables |
General Specifications
ANSI/TIA Category | 7A |
Cable Component Type | Horizontal |
Cable Type | S/FTP (shielded) |
Conductor Type, singles | Solid |
Conductors, quantity | 8 |
Jacket Color | Whiter |
Pairs, quantity | 4 |
Transmission Standards | ANSI/TIA-568-C.2| CENELEC EN 50288-6-1| EN 50173-1| ISO/IEC 11801 Class E |
Dimensions
Cable Length | 3281 ft | 1,000.049 m |
Diameter Over Jacket, nominal | 0.295 in | 7.493 mm |
Conductor Gauge,singles | 23 AWG |
Electrical Specifications
Operating Voltage, maximum | 80 V |
Material Specifications
Conductor Material | Bare copper |
Insulation Material | Polyolefin |
Jacket Material | Low Smoke Fire Retardant Zero Halogen (LSFRZH) |
Shield (Tape) Material | Aluminum / Polyester |
Environmental Specifications
Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
EN50575 CPR Cable EuroClass | Dca | a1 | d1 | s2 |
Packaging and Weights
Packaging Type | Reel |
Regulatory Compliance/Certifications
Agency | Classification |
CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
CHINA-ROHS | Below maximum concentration value |
REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
ROHS | Compliant |
