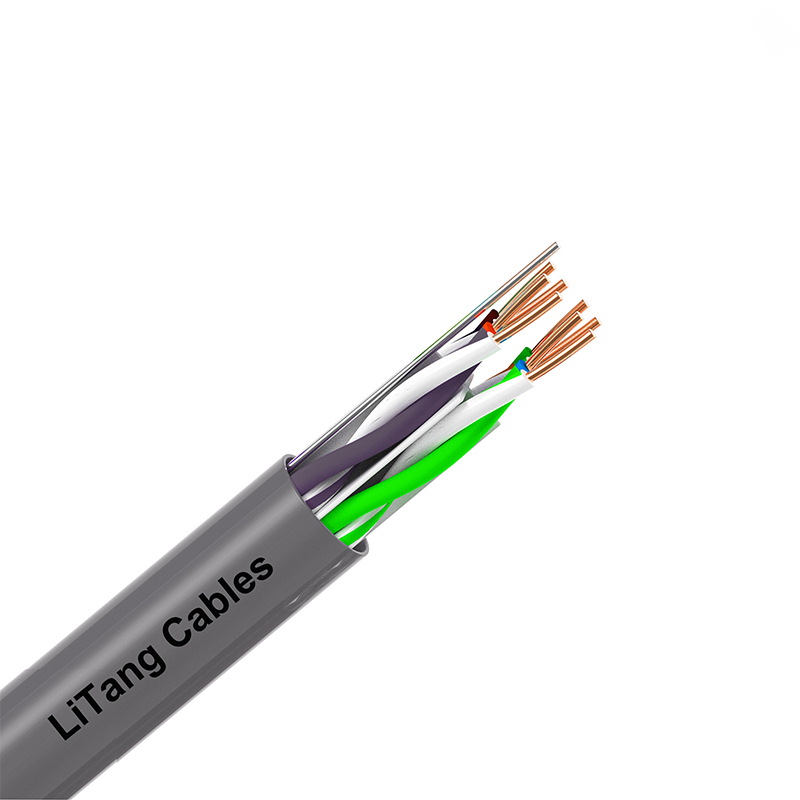

CAT5E UTP Ethernet Cable

CAT 5e Series UTP Ethernet Cable, category 5e, 4 pair, UTP, 350 MHz, CMR rated, 1000 ft reel-in-box, gray
Availability:
CAT5E UTP Ethernet Cable

Product Classification


Regional Availability

Asia | Latin America | North America

Portfolio

LITANG®

Product Type

Twisted pair cables

Product Series

CAT 5e Series


General Specifications


Product Number

520005

ANSI/TIA Category

5E

Cable Component Type

Horizontal

Cable Type

U/UTP (unshielded)

Conductor Type, singles

Solid

Conductors, quantity

8

Jacket Color

Grey

Pairs, quantity

4

Transmission  Standards

ANSI/TIA-568-C.2 |  CENELEC EN 50288-6-1| ISO/IEC 11801 Class D


Dimensions


Cable Length

1000 ft | 304.8 m

Diameter  Over Jacket, nominal

0.185 in | 4.699 mm

Conductor Gauge,singles

24 AWG


Electrical Specifications


Dharacteristic Impedance

100 ohm

Characteristic  Impedance  Tolerance

±15 ohm

dc  Resistance,  maximum

6.66 ohms/100 m | 2.03 ohms/100 ft

Delay Skew, maximum

45 ns

Mutual  Capacitance at Frequency

5.6 nF/100 m @ 500 MHz

Nominal Velocity of Propagation (NVP)

64 %

Operating Voltage, maximum80 V
Remote  PoweringFully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A


Material Specifications

Conductor Material

Bare copper

Insulation Material

Polyolefin

Jacket Material

PVC


Mechanical Specifications

Minimum   Bend   Radius, multiple  Bends

28.8 mm | 1.134 in


Environmental Specifications

Operating Temperature

-20 °C to +60 °C (-4 °F to +140  °F)

Acid Gas Test Method

IEC 60754-2

Flame Test Method

IEC 60332-1

Safety  Standard

ETL| UL

Smoke Test Method

IEC 61034-2


Packaging and Weights


Cable Weight

22 lb/kft | 3.042 kg/km

Packaging Type

Reel in box
