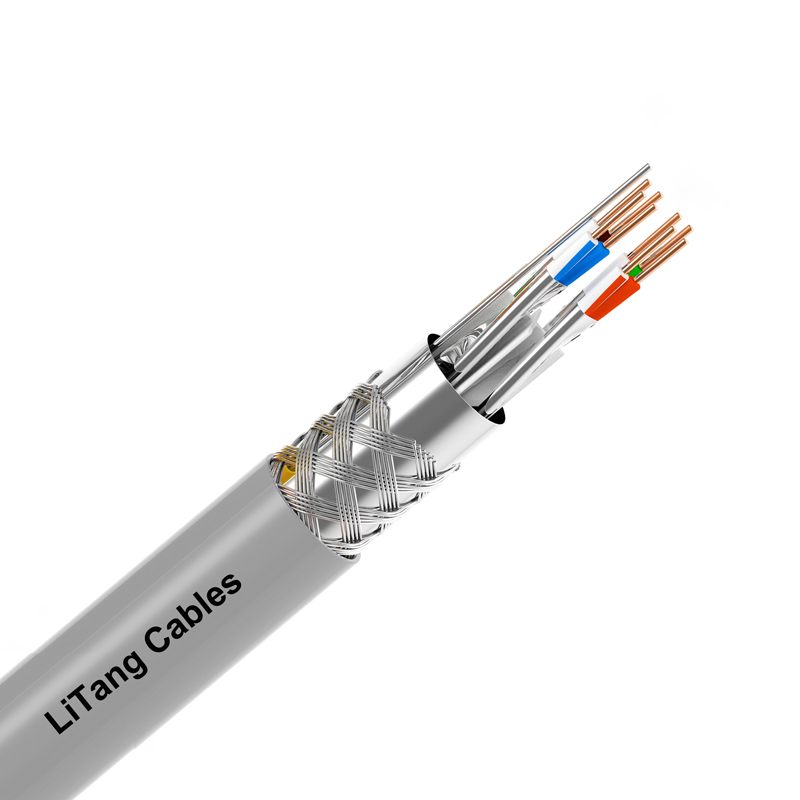

CAT7A S/FTP Cable

7A20001 Category 7A S/FTP Cable, low smoke zero halogen, white jacket, 4 pair count, 1640 ft (500 m) length, reel
Availability:
CAT7A S/FTP Cable

Product Classification


Regional Availability

Asia | Australia/New Zealand | EMEA | Latin America

Portfolio

LITANG®

Product Type

Twisted pair cables

Ordering Note

Available in Europe, Middle East, and Africa


General Specifications


Product Number

7A20001

ANSI/TIA Category

7A

Cable Component Type

Horizontal

Cable Type

S/FTP (shielded)

Conductor Type, singles

Solid

Conductors, quantity

8

Jacket Color

White

Pairs, quantity

4

Transmission  Standards

ISO/IEC 11801 Class FA


Dimensions


Cable Length

1640 ft | 499.872 m

Cable Length Tolerance

±5%

Diameter   Over Jacket,  nominal

0.295 in  |  7.493 mm

Jacket  Thickness

0.025 in  |  0.635 mm

Conductor Gauge, singles

23 AWG

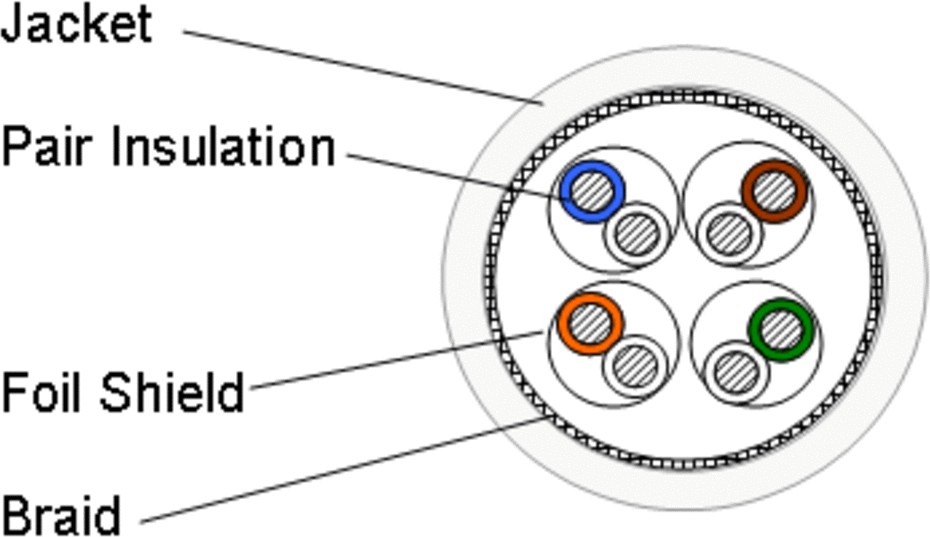

Cross Section Drawing




Electrical Specifications


dc Resistance Unbalance, maximum

2 %

dc  Resistance,  maximum

7.61 ohms/100 m | 2.32 ohms/100 ft

Mutual   Capacitance  at  Frequency

4.3 nF/100 m @ 1 kHz

Nominal Velocity of Propagation (NVP)

76 %

Operating Frequency, maximum

1000 MHz

Operating Voltage, maximum

80 V


Electrical Performance




Material Specifications

Conductor Material

Bare copper

Insulation Material

Polyolefin

Jacket Material

Low Smoke Zero Halogen (LSZH)

Shield (Braid) Material

Tinned copper

Shield (Tape) Material

Polyester/Aluminum shield


Mechanical Specifications


Pulling  Tension,  maximum

25 lb | 11.34 kg


Environmental Specifications


Installation  temperature

0 °C to +50 °C (+32 °F to +122 °F)

Operating  Temperature

-20 °C to +60 °C (-4 °F to +140 °F)

Acid  Gas Test Method

IEC 60754-2

EN50575   CPR Cable  EuroClass

Dca|  a1|  d1| s2

Environmental  Space

Low Smoke Zero Halogen (LSZH)

Flame Test Method

IEC 60332-3-24

Smoke Test Method

IEC 61034-2


Packaging and Weights


Cable weight

43.14 lb/kft | 5.964 kg/km

Packaging Type

Reel


Regulatory Compliance/Certifications


Agency

Classification

CENELEC

EN 50575 compliant, Declaration of Performance (DoP) available

CHINA-ROHS

Below maximum concentration value

ISO 9001:2015

Designed, manufactured and/or distributed under this quality management system

REACH-SVHC

Compliant as per SVHC revision on www.commscope.com/ProductCompliance

ROHS

Compliant
