Product Classification
Regional Availability | Australia/New Zealand | EMEA |
Portfolio | LITANG® |
Product Type | Twisted pair cables |
Ordering Note | Available in Europe, Middle East, and Africa |
General Specifications
Product Number | 720003 |
ANSI/TIA Category | 7 |
Cable Component Type | Horizontal |

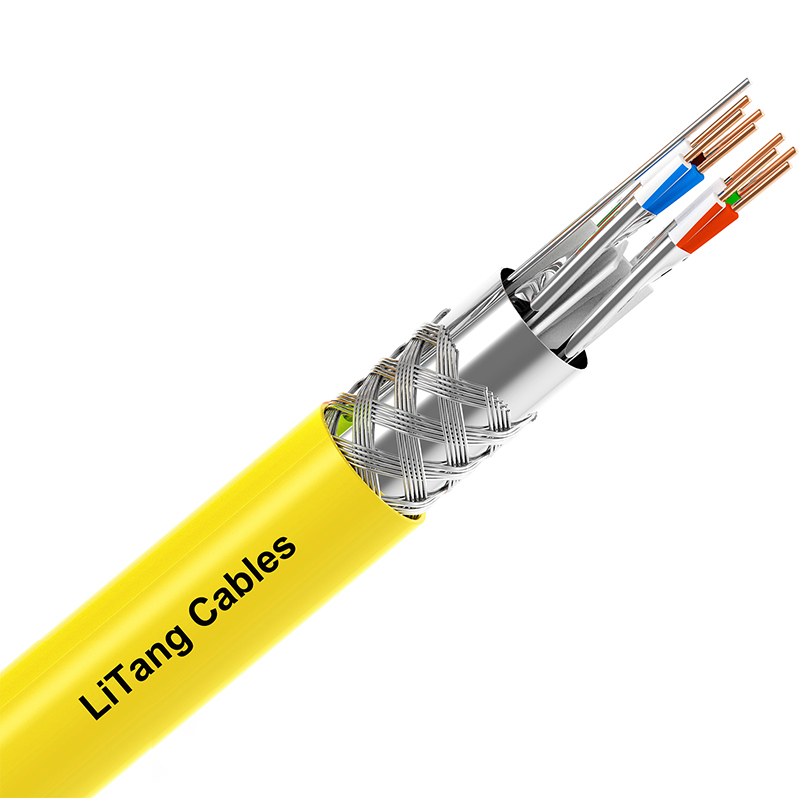

Cable Type | S/FTP (shielded) |
Conductor Type, singles | Solid |
Conductors, quantity | 8 |
Jacket Color | Yellow |
| Note | All electrical transmission tests include swept frequency measurements |
| Pairs ,quantity | 4 |
Transmission Standards | CENELEC EN 50288-4-1| ISO/IEC 11801 Class F |
Dimensions
Cable Length | 1640 ft | 499.872 m |
Cable Length Tolerance | ±5% |
Diameter Over Jacket, nominal | 0.291 in | 7.391 mm |
Jacket Thickness | 0.025 in | 0.635 mm |
Conductor Gauge,singles | 23 AWG |
Cross Section Drawing
Electrical Specifications
dc Resistance Unbalance, maximum | 2 % |
dc Resistance, maximum | 7.61 ohms/100 m | 2.32 ohms/100 ft |
Mutual Capacitance at Frequency | 4.2 nF/100 m @ 1 kHz |
Nominal Velocity of Propagation (NVP) | 80% |
Operating Frequency, maximum | 600 MHz |
Operating Voltage, maximum | 80 V |
Electrical Performance
Material Specifications
Conductor Material | Bare copper |
Insulation Material | Polyolefin |
Jacket Material | Low Smoke Zero Halogen (LSZH) |
Separator Material | Polyolefin |
Shield (Braid) Material | Tinned copper |
Shield (Tape) Material | Polyester/Aluminum shield |
Pulling Tension, maximum | 25 lb | 11.34 kg |
Environmental Specifications
Installation temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
Acid Gas Test Method | IEC 50267-2-3 |
EN50575 CPR Cable EuroClass | B2ca | a1 | d1 | s2 |
Environmental Space | Low Smoke Zero Halogen (LSZH) |
Flame Test Method | IEC 60332-3-24 |
Smoke Test Method | IEC 61034-2 |
Packaging and Weights
Cable Weight | 38.3 lb/kft | 5.295 kg/km |
Packaging Type | Reel |
Regulatory Compliance/Certifications
Agency | Classification |
CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
CHINA-ROHS | Below maximum concentration value |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
REACH-SVHC | Compliant as per SVHC revision on www.litangcables.com/ProductCompliance |
ROHS | Compliant |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
